Name: 2024 Hot Sale 6 Inch Tuya Smart Home Central Control Touch Panel Knob Adjustment Intelligent Voice Control Tuya Zigbee Gateway
SKU: 1005007071809627
Availability: InStock

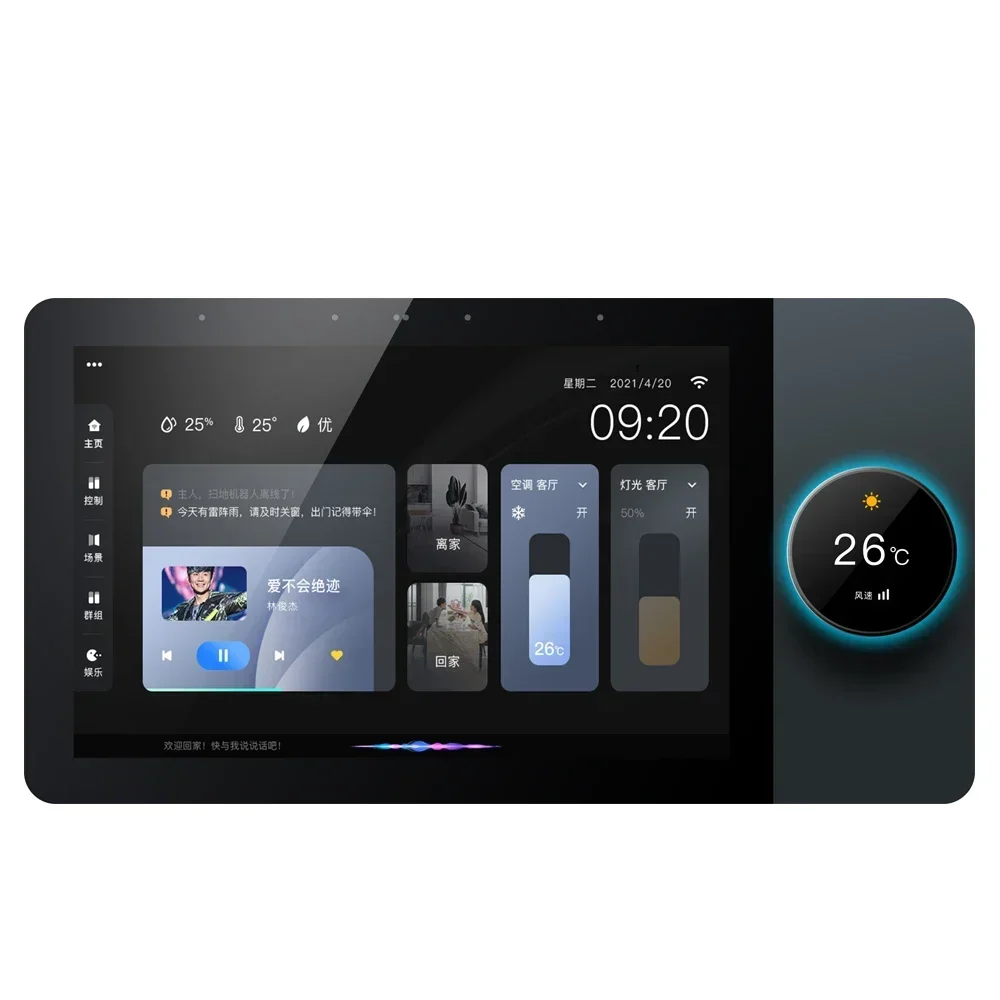

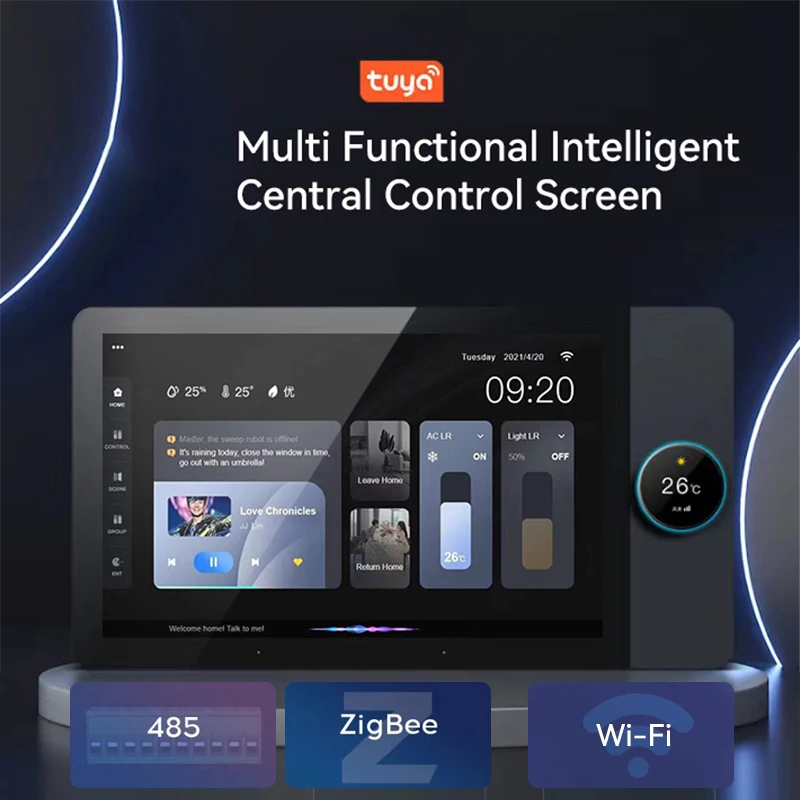

6-Inch Tuya Smart Home Controller Touch Screen HD IPS Panel

Product function introduction

1. This host is connected to Tuya smart home. You can scan the code through Tuya APP to bind this host. After successful binding, you can control Tuya smart home

2. Cortex1.5GHZ quad-core CPU, 6-inch multi-touch capacitive screen, 1440*720 IPS high-definition resolution display; host system: Android 8.1 system

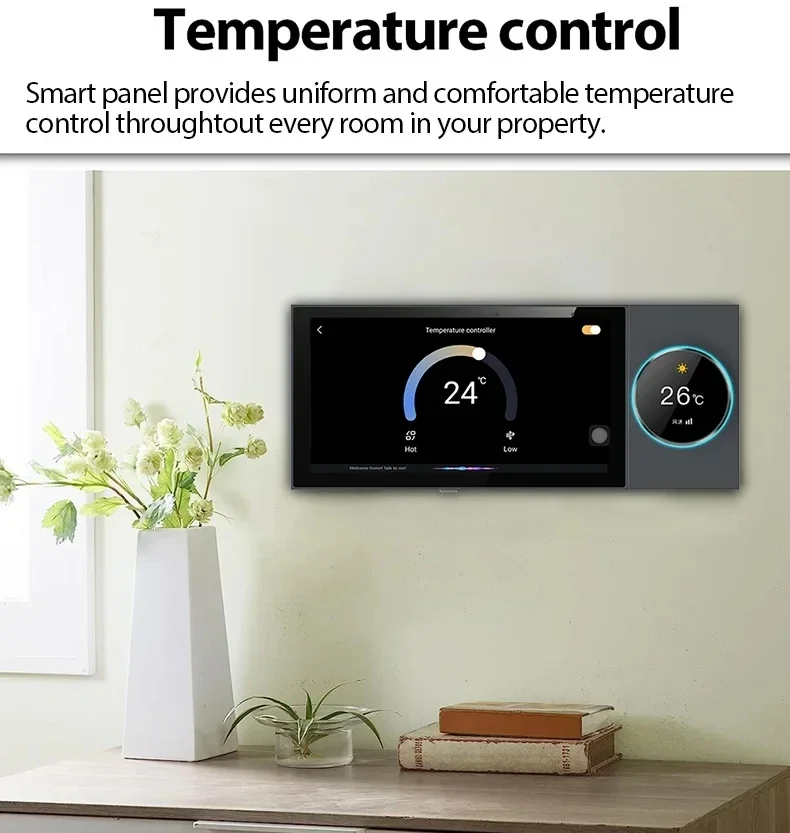

3. Supports adjusting air conditioning, volume, curtains, and lighting percentage by knob; press to switch devices.

4. Support 2-way relay to control lights (relay version)

5. Support voice on-demand music, stories, weather, jokes, crosstalk, sketches

6. Support voice to adjust volume

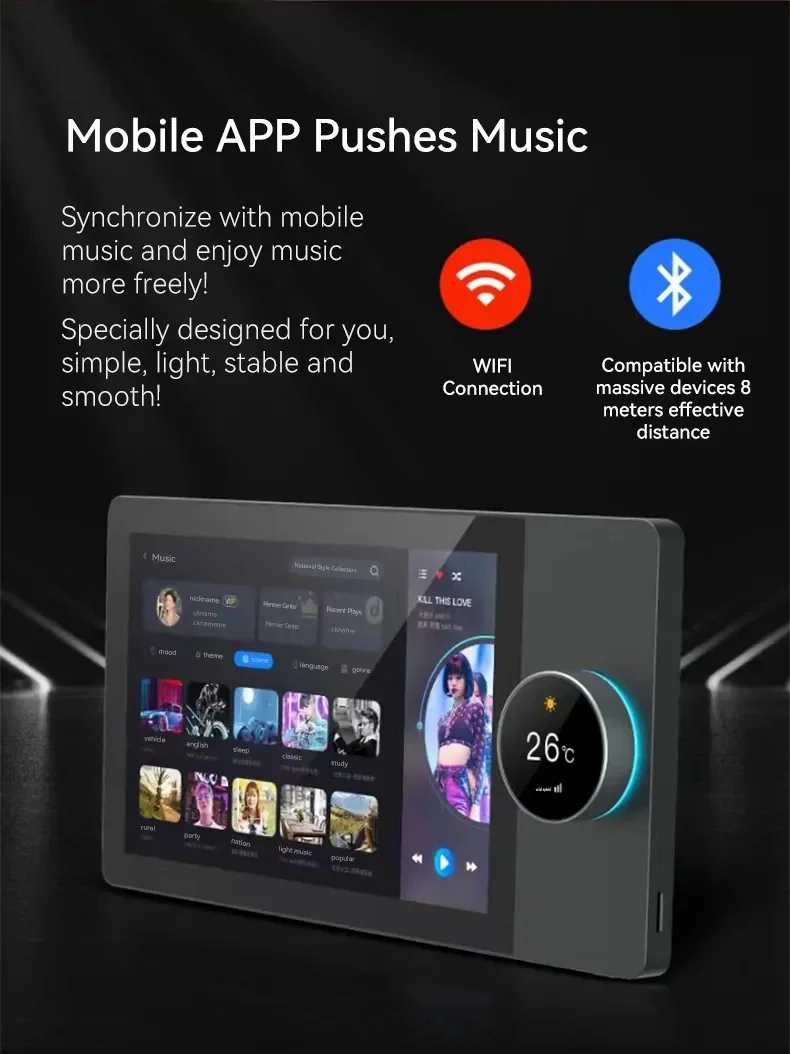

7. Support mobile phone APP on-demand music, stories, and management of host-related APPs

8. Support pairing of external Bluetooth devices such as mobile phones to achieve audio playback, can bidirectionally control the playback of external Bluetooth device music, and can set Bluetooth on or off

9. Support wallpaper switching function

10. Support screen saver switching function

11. Support scene music function

12. Support multiple timed music playback; set the time arbitrarily, and select the timed start to play the specified song

13. Support timed restart host function;

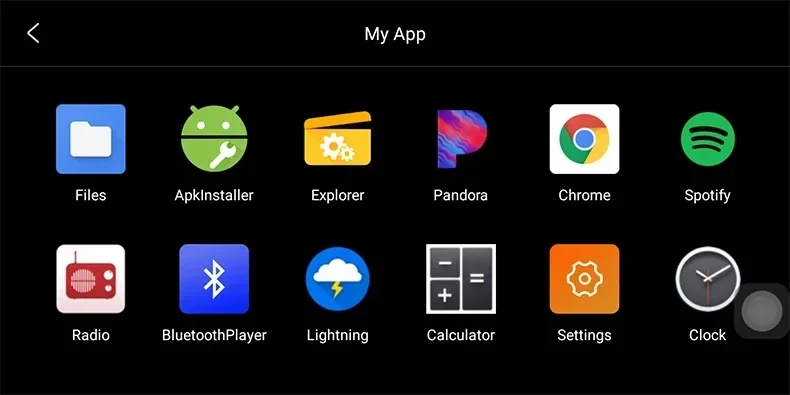

14. Support various Android software installation;

15. Support external devices to control the machine through 485

16. Support audio input function

17. Support audio output function

18. Support TF card and MICRO 2.0USB interface, USB can be external hard disk.

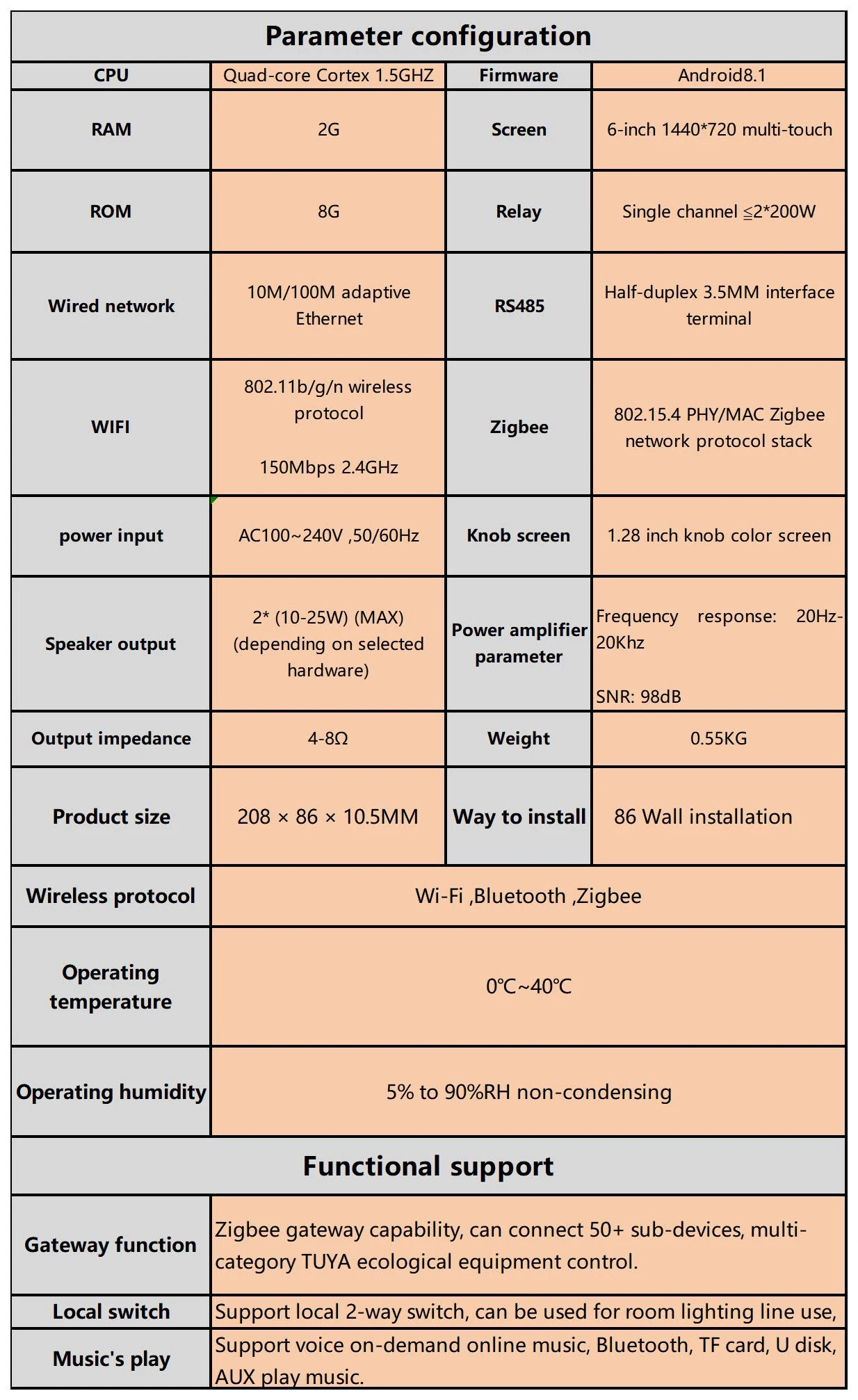

Product configuration and parameters

◉ Operating system: Android 8.1 System

◉ CPU model: Quad core Cortex-A35 architecture,1.5GHZ
◉ Main screen size: 6" HD IPS (Full View)

◉ Small circular screen:1.28 inch 240*240
◉ Resolution ratio: 1440*720
◉ Network: Support Wi-Fi, RJ45, ZIGBEE

◉ Smart home control with RS485 port
◉ Audio To Noise Ration : 98db
◉ Bluetooth Version : BT 4.0 ,connect your phone

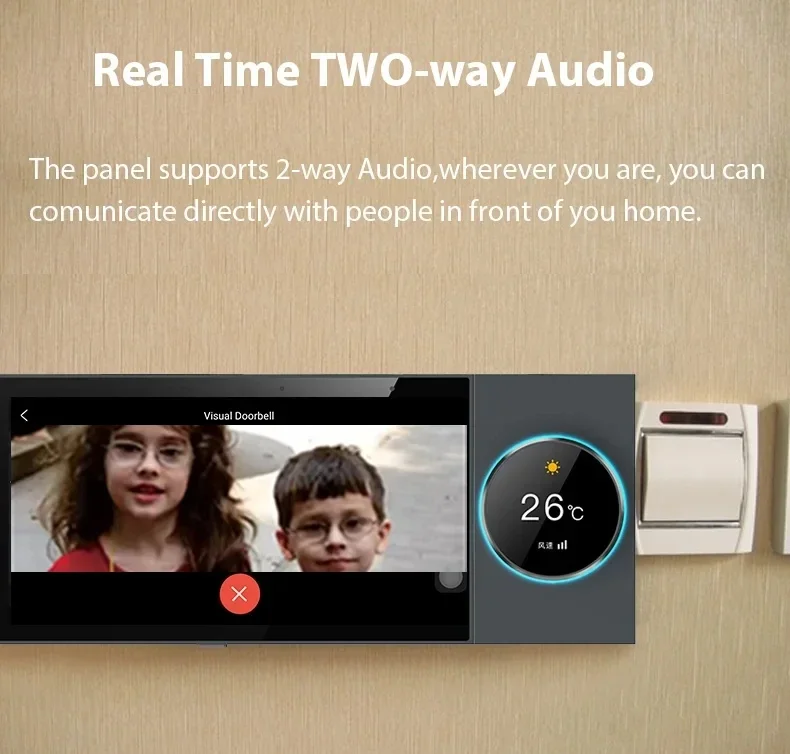

◉ IOT : Tuya /ZIGBEE Lights, outlets, air conditioning, scenes, groups, video doorbells, curtains
◉ Relay: 2 way light control, less than 200W
◉ Power input : AC110-250V

◉ Built-in 1W speaker

◉ Built-in TUYA application

◉ Package:
1 x 6 inch Panel
1 x Mounting bracket
2 x Screws

1 x User Maunal

Product Details

Product features and application scenarios

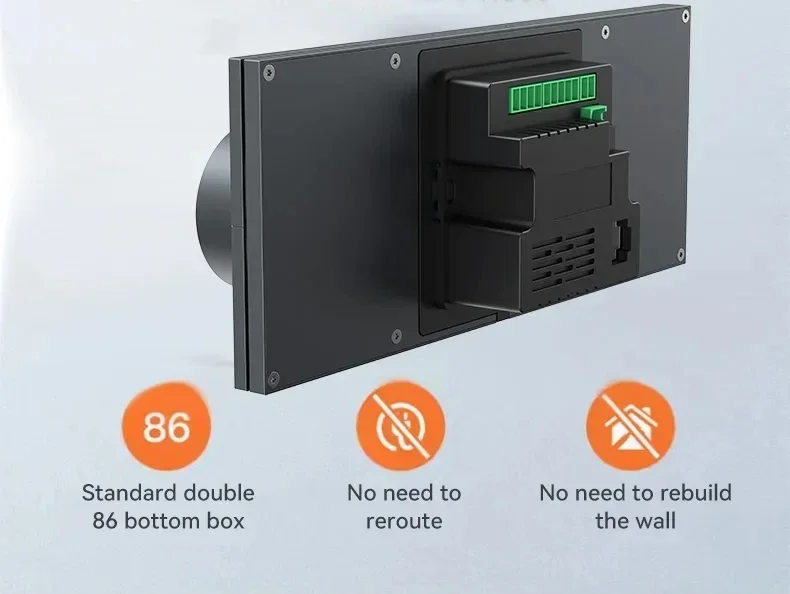

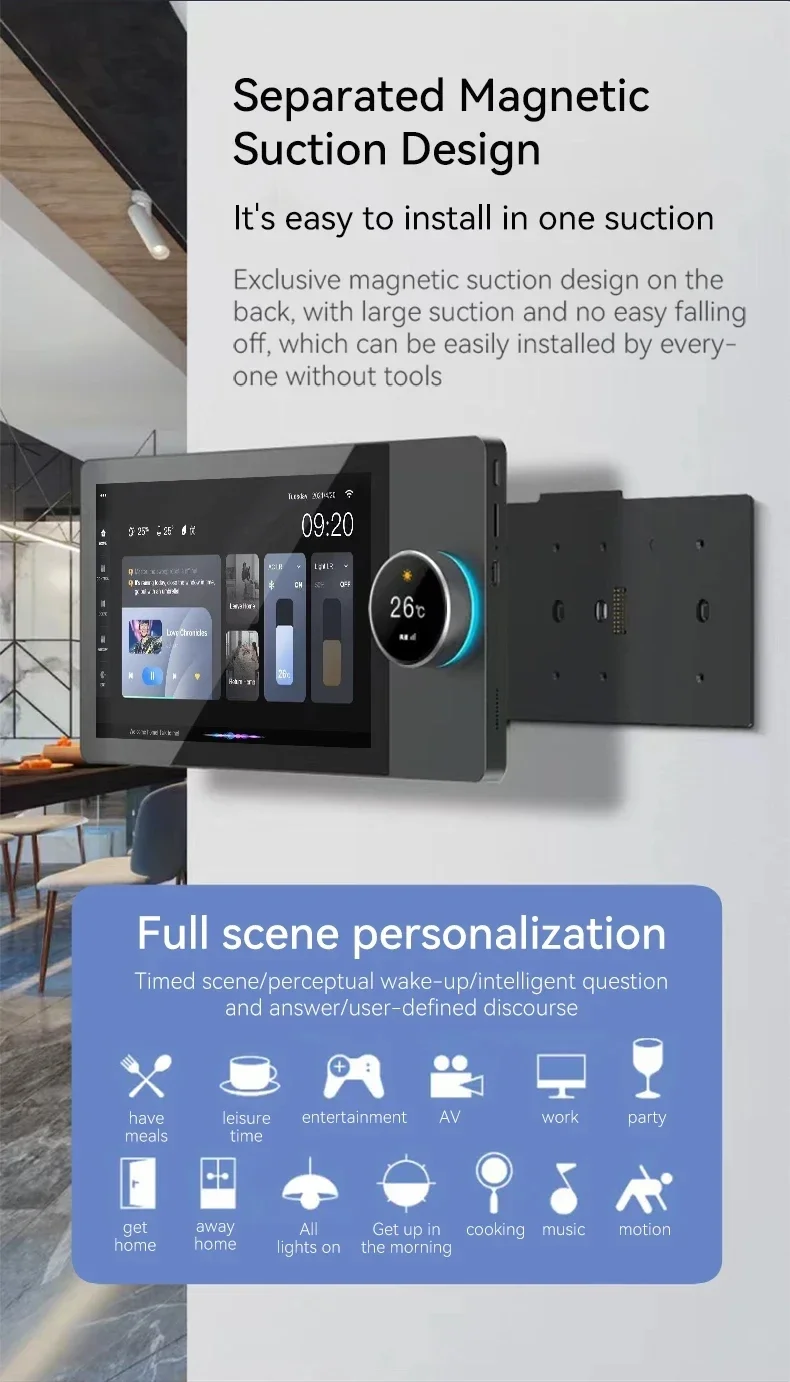

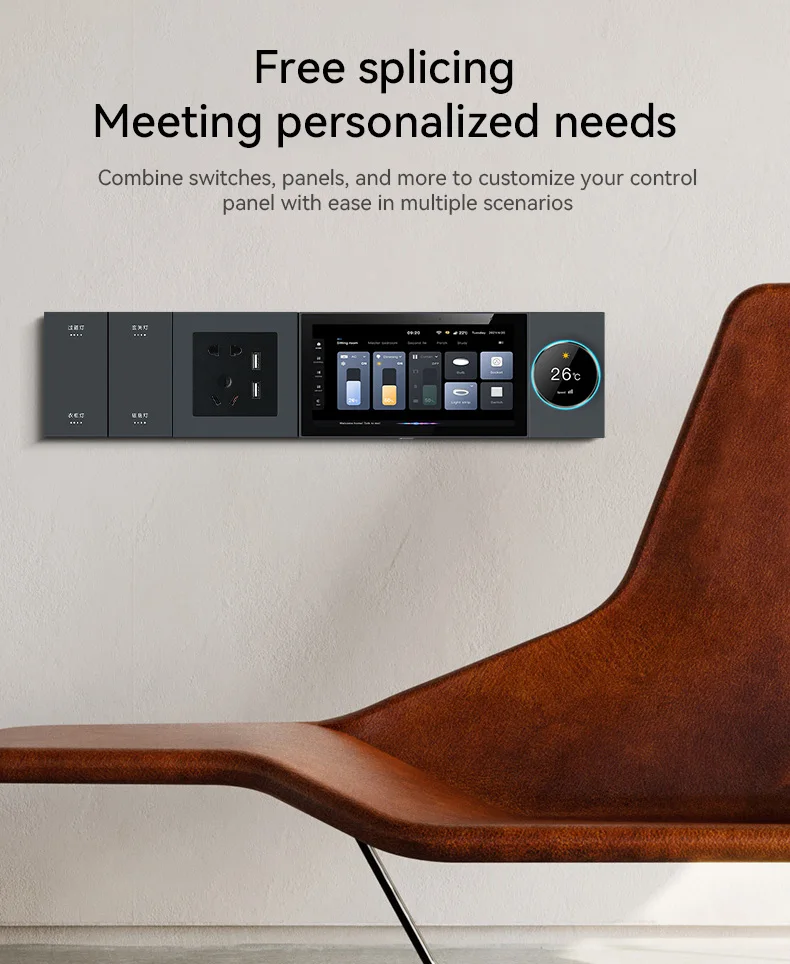

● 86 Inwall type hidden installation structure, easy installation mode, no need to transform the wall, any collocation.

● 6-inch HD LCD, G+FF process multi-touch, and switch ratio at the same height

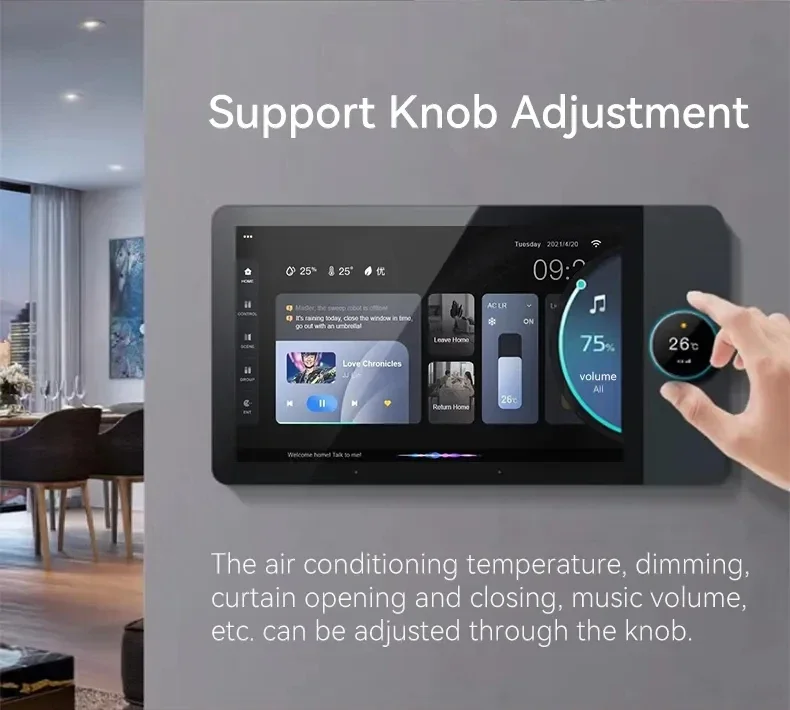

● With its own knob design, by pressing the switch equipment, through the knob rotation to adjust the lights, curtains, volume and other equipment

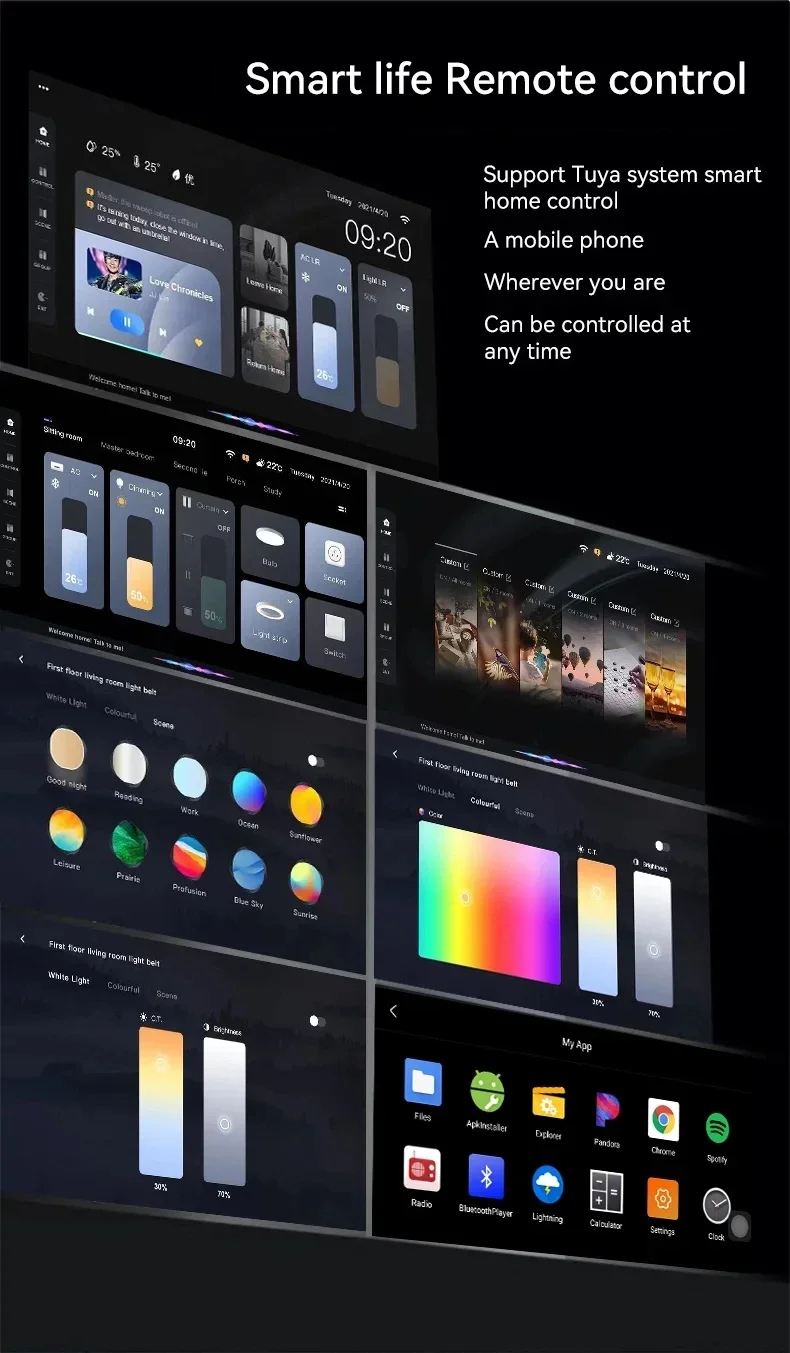

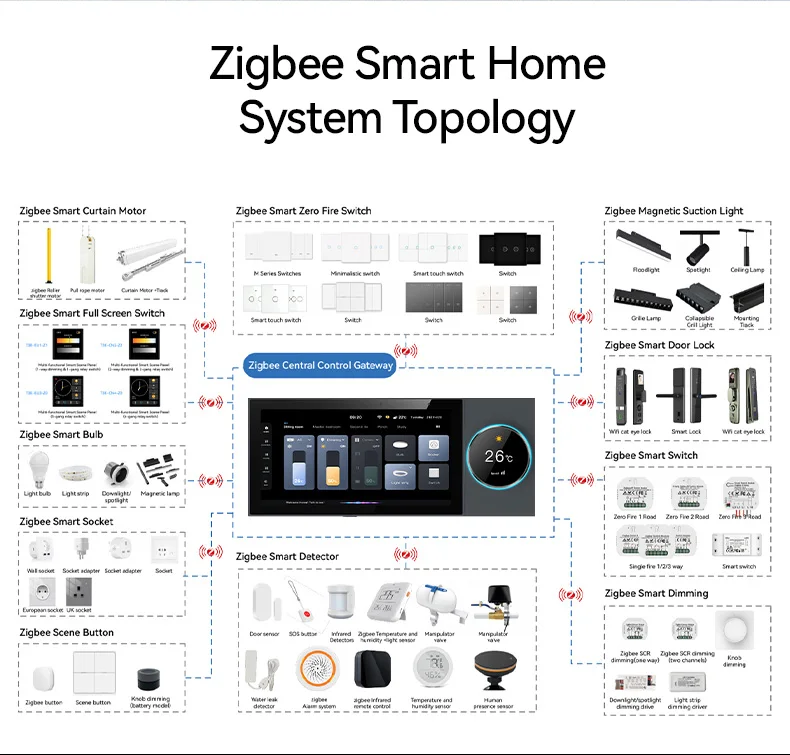

● Smart home interconnection, situational mode, Zigbee gateway function, device automation, remote APP control.

● It can easily realize the precise control of intelligent devices such as lights, curtains, air conditioners, etc., without hands, compatible with some TUYAecological devices

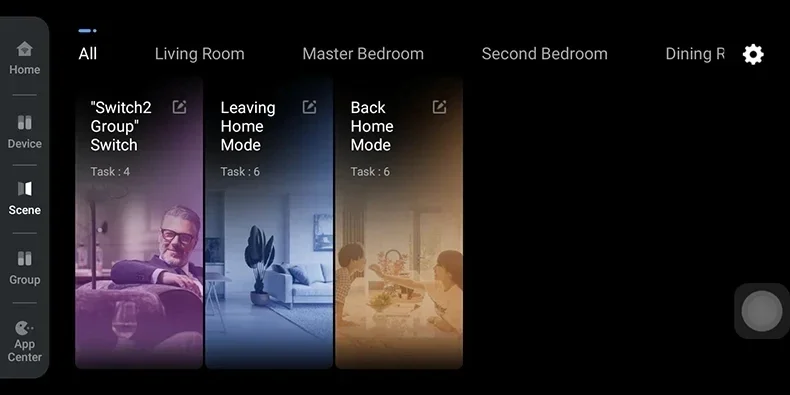

●You can customize a linkage scenario to quickly change the scenario mode.

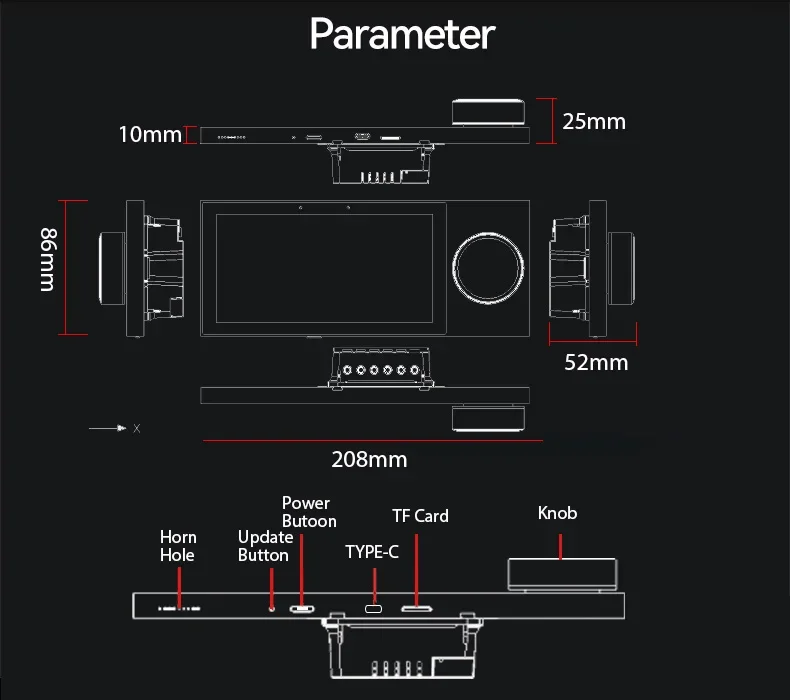

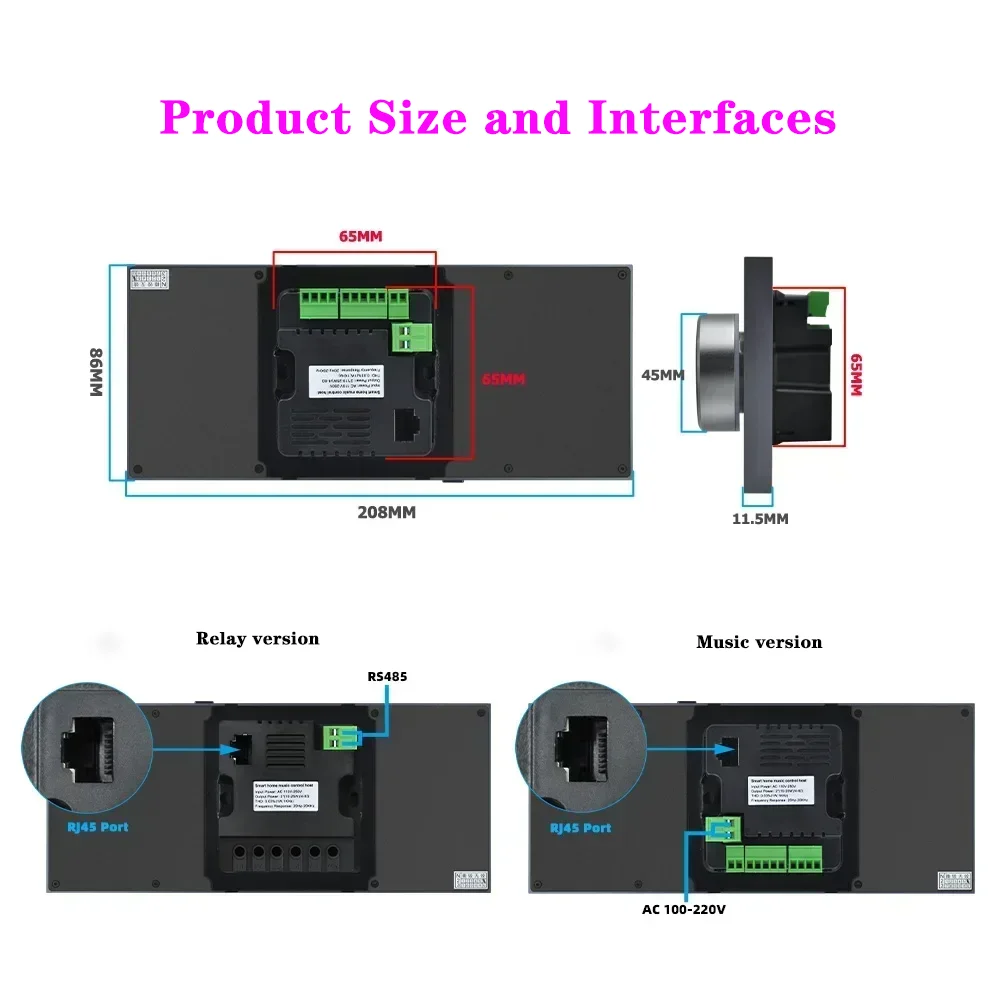

External interface description

● TF card: read TF card interface

● TYPE-C USB: external USB, with conversion cable can read U disk; Upgrade

● Button: short press the lock screen/light screen; Press and hold to power off/restart

● With speaker sound hole

● Knob: press to switch equipment. Rotate to adjust light brightness, curtains, air conditioning, volume, etc.

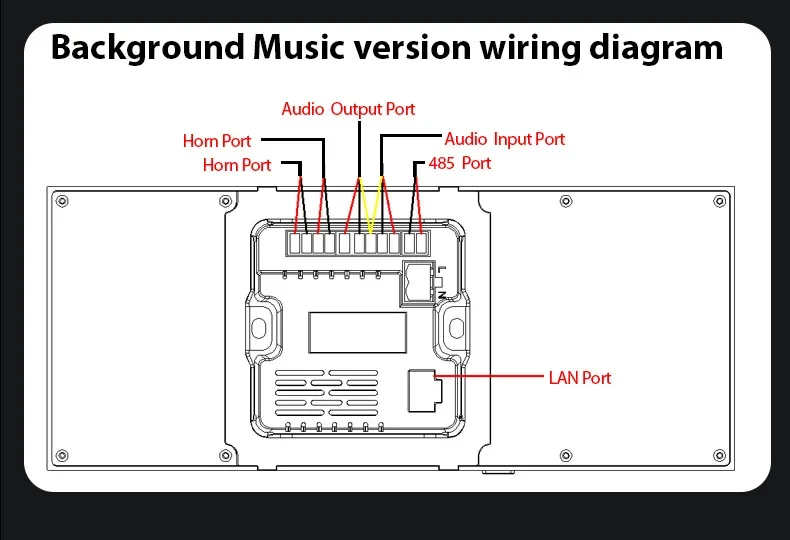

● 485: connected to 485A 485B through the external device to control the background music, you can also control other 485 devices through the machine

● Ethernet port: Supports wired network

● Disassembly mouth: disassemble the shell fixing screw pry open gap

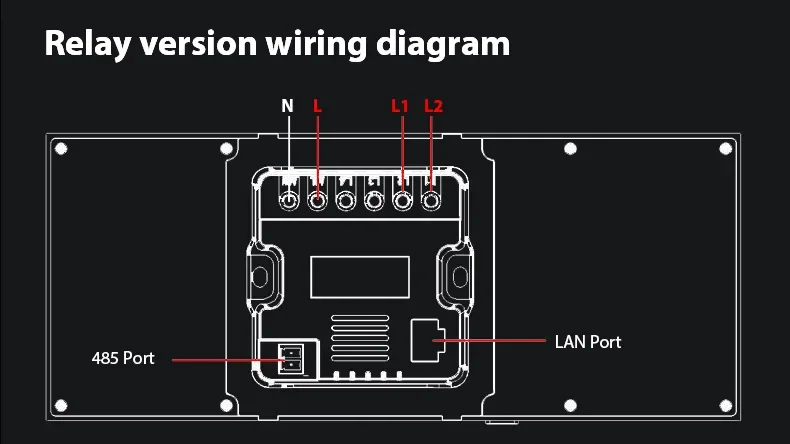

L Live line input N Neutral line input, L1 L2 is 2 for the switch control line respectively connect the corresponding light live line output (based on the actual host access)

Specification: 2024 Hot Sale 6 Inch Tuya Smart Home Central Control Touch Panel Knob Adjustment Intelligent Voice Control Tuya Zigbee Gateway

Color	6 inch relay version, 6 inch music version
Hign-concerned Chemical	none
Communication method	zigbee,Bluetooth-compatible,Wi-Fi
Compatibility	Android
Brand Name	CTVS
Origin	Mainland China
Version	Relay/Music
Certification	CE,FCC,RoHS
OS	Andriod
RAM	2G
ROM	8G
Resolution ratio	1440*720
Small circular screen	1.28 inch 240*240
Product Size	207.58610mm
Weight	0.85KG
Number of relays	2
Digging hole size	Standard 86 boxes
Installation method	Pre-buried installation

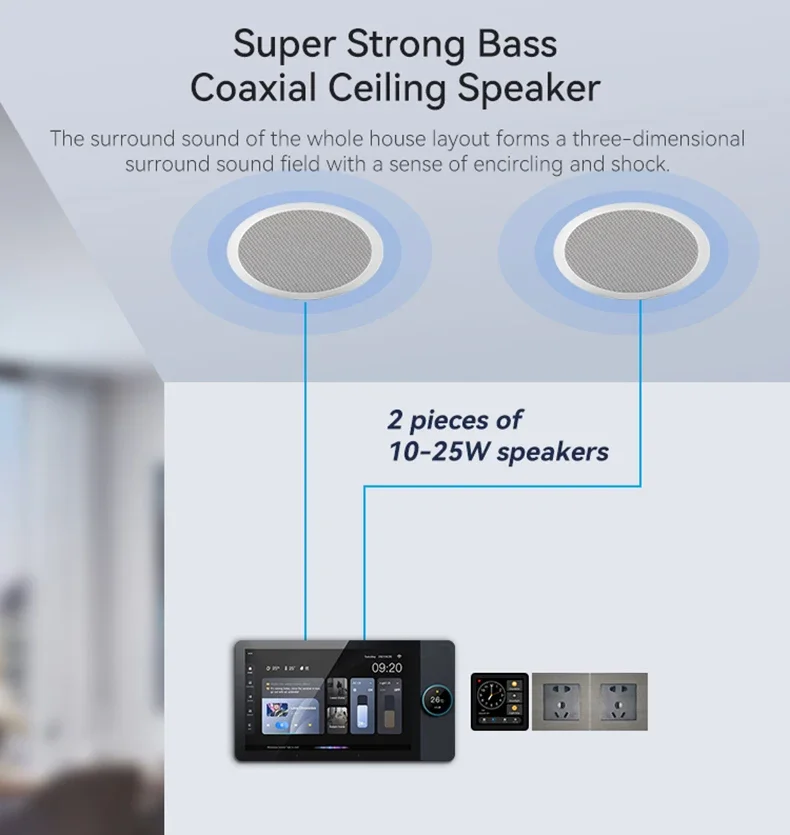

Output Power	2*20W
Application	Smart life APP
Output impedance	4-8 Ohms
Harmonic Distortion	0.03%
Frequency Response	20Hz-20Khz
CPU Frequency	1.5GHZ
Audio	AUX,One set
