DC15-36V ZK-1602T Bluetooth Audio Power Amplifier Module TDA7498E 160WX2 High Bass Adjustment Amplifier Board

Features:

1: Power amplifier chip: TDA7498E

2: Widely used

3: Protection mechanism: anti-reverse connection, undervoltage, overheating, overcurrent, short circuit protection

4: Long-life ultra-quiet fan (blocked rotor does not burn, no noise)

5: Simple to use and easy to understand

Product parameters:

Product name: 2.0 channel Bluetooth audio power amplifier module

Product model: ZK-1602T

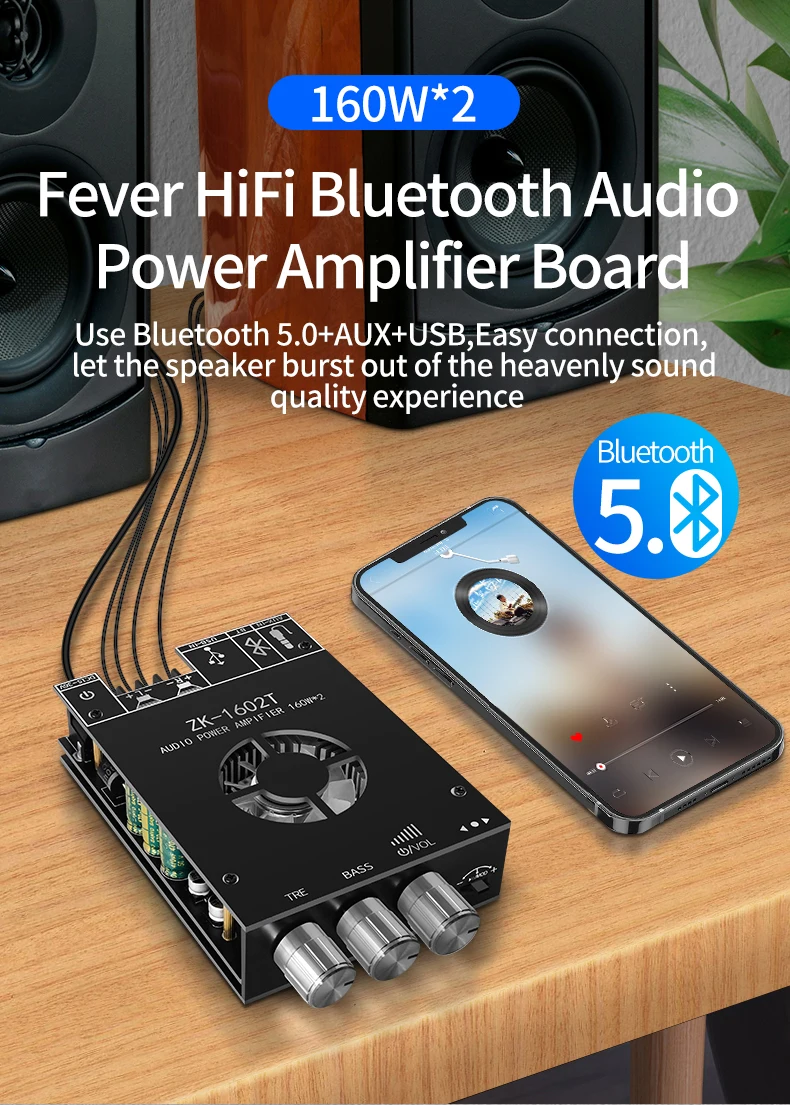

Bluetooth version: 5.0 (unobstructed, 10 meters)

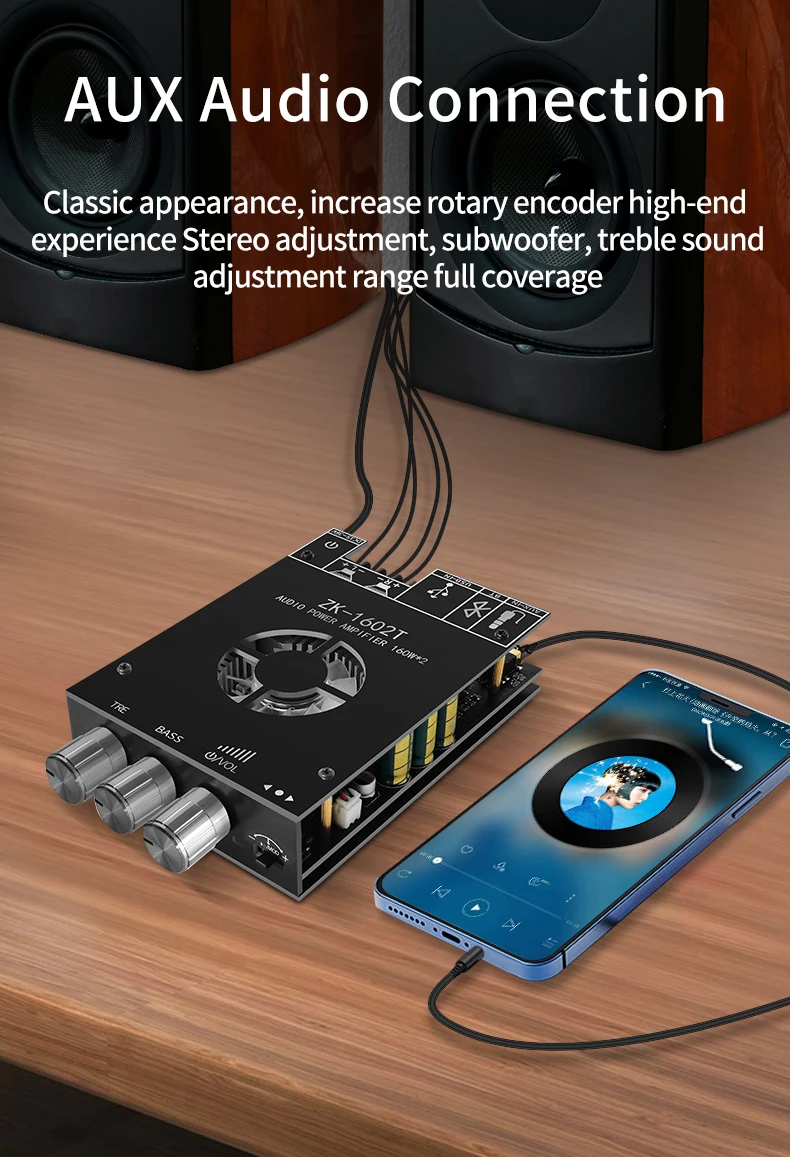

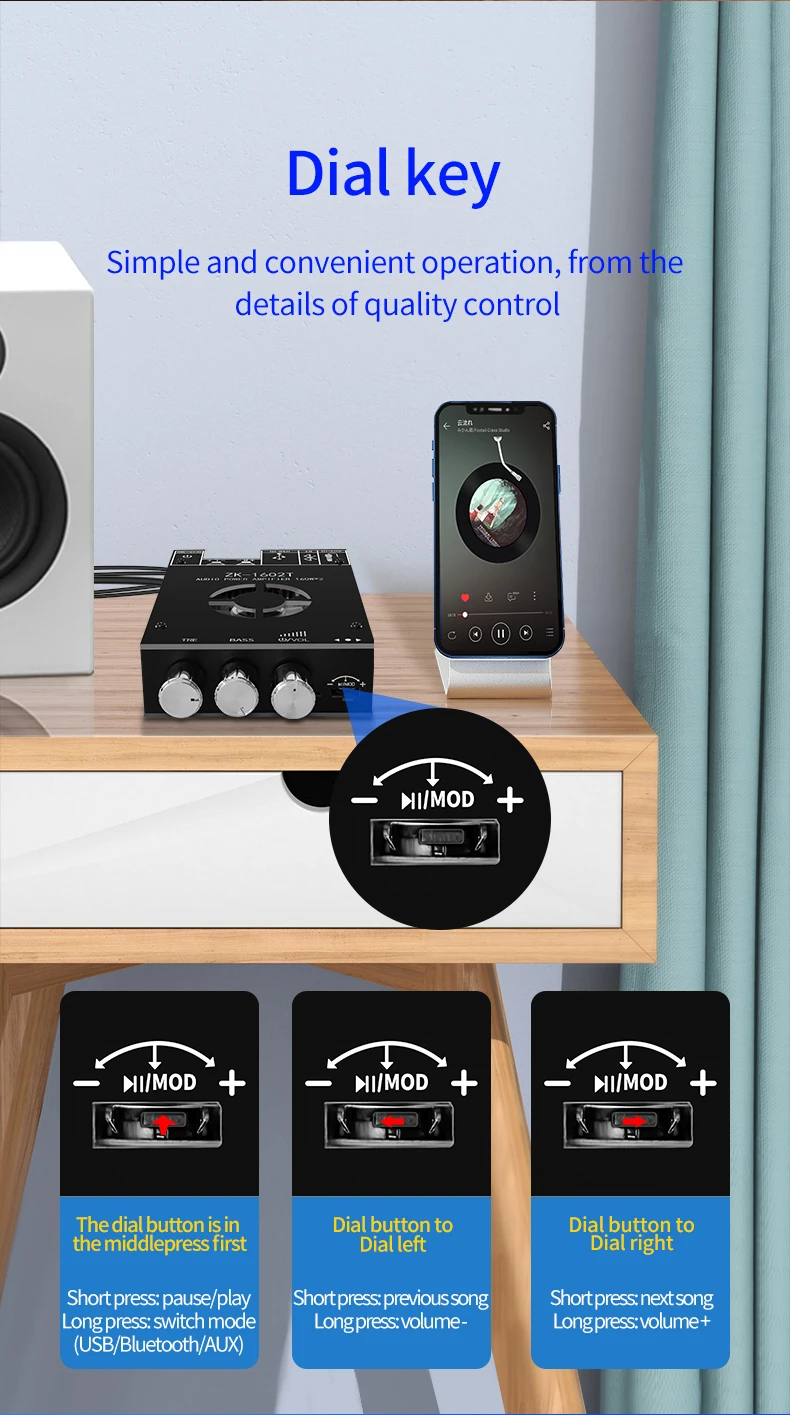

Input method: AUX + for Bluetooth + USB (switching mode and song by dial button)

Number of channels: 2.0 channels (left channel + right channel)

Amplifier chip: TDA7498E

Adapter power supply: DC15~36 V (under voltage protection below 9V, 12V power supply can also be supported)

Adapted speaker: 30-200W, 4-8Ω

Output power: left and right channels ≤160w

Protection mechanism: anti-reverse connection, undervoltage, overheating, overcurrent, short circuit protection

Product size: 134*80*28mm

Product weight: net weight 209g, including packaging 257g

Tip: When the audio signal input is large enough and the power supply voltage/current is large enough, there will be enough output power!

The higher the power supply voltage, the higher the output power, and the smaller the speaker impedance, the higher the output power! Please make sure that the power of the adaptor is greater than the actual working power of the amplifier!

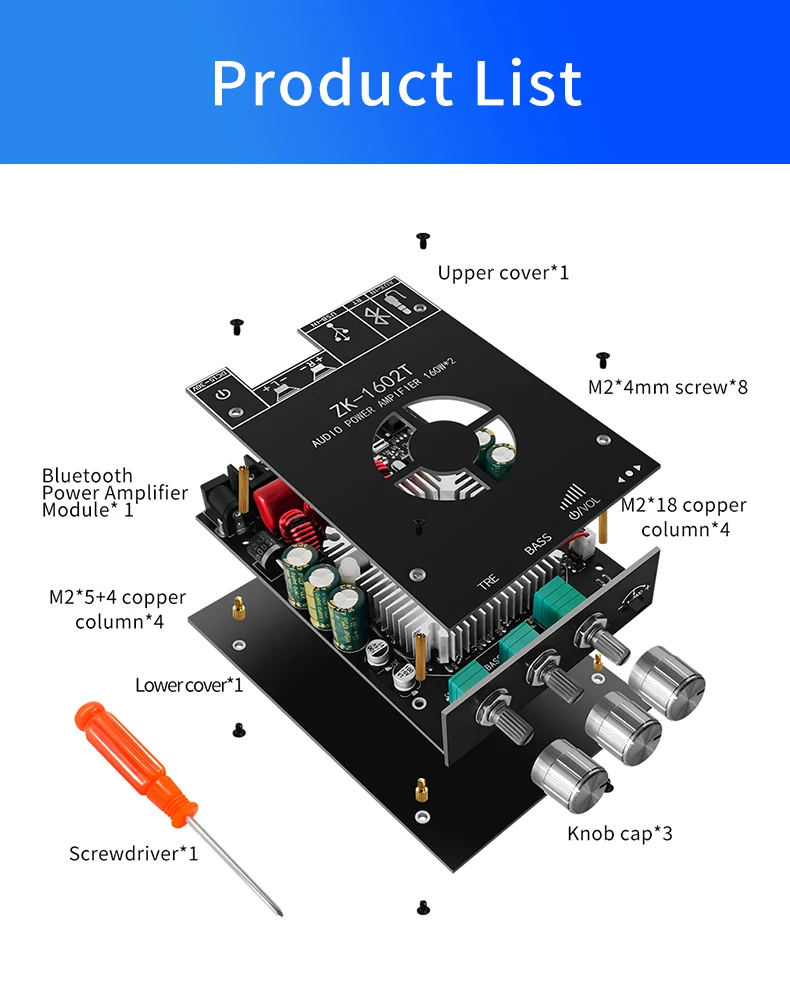

Checklist

1 x Power amplifier board module
