NOTE:

1. The Zigbee Hub only adapt to the devices of Tuya solution. It Supports APP: Smart Life and Tuya Smart. It does not support other solutions of zigbee products, such as XiaoMI.

2. This Zigbee Hub communicate with server via WiFi, Not communicate with the devices of Tuya WiFi solution . That is to say, if your product is a product of Tuya WiFi, you do not need a Zigbee gateway.

3. Tuya Zigbee Hub does not support Alexa/Google Home/Yandex. It only provides data channels.Third party (Alexa/Google Home/Yandex) support completed by sub devices

4. There is no built-in battery, and it needs to be continuously powered by USB. The power adapter is not included in the package.

5. Only G01 Pro supports Tuya Bluetooth sub devices.

G01 Product Parameter:

Power input:DC 5V1A(Micro USB, Adapter Not Included)
Wireless Type: WiFi(2.4GHz)+ ZigBee3.0 + Bluetooth5.0
Working temperature:-20°C ~ 85°C
Working humidify ：10% ~90% (non-condensing)
Product size:50*50*11mm

Configuration: Add Tuya Zigbee under device.

Note: Using Tuya Zigbee Door Sensor as an example. The APP page is G01 PRO, and there are different pages for G01

Configuration:Add Tuya bluetooth sub device.

Note: Using Tuya bluetooth Temperature and humidity sensor as an example. The APP page is G01 PRO, and G01 does not have this function.

FQA

Q:What are the suggestions for the installation location?

A:We suggest installing it in an open location. Do not install it in a closed iron box as it will affect signal transmission.

The WiFi signal at the installation location must be normally.

Q:How many Bluetooth or Zigbee sub devices can it support?

A:In general, G01 and G01 PRO support 30 Zigbee sub devices (sensor class);

If there are Route capable nodes in the network, more Zigbee sub devices can be connected.

Only G01 PRO supports 30 Bluetooth sub devices.

Q:What is the transmission distance?

A:The transmission distance of Zigbee is similar to WiFi.

It can cover any location that a typical WiFi (2.4GHz) router can cover However, the direct isolation of the equipment may reduce the transmission distance.

Low power Bluetooth typically has a transmission distance of 10-15 meters and can penetrate 1 to 2 walls.

Q:If my product is a Tuya WiFi product, do I need this device?

A:No, it can directly link to your WiFi router

Our device's WiFi function is only a communication method for connecting to cloud services, and it does not support WiFi device access.

Q: Does G01 support Tuya Bluetooth device?

A:G01 does not support Bluetooth sub devices, only G01 PRO supports them.

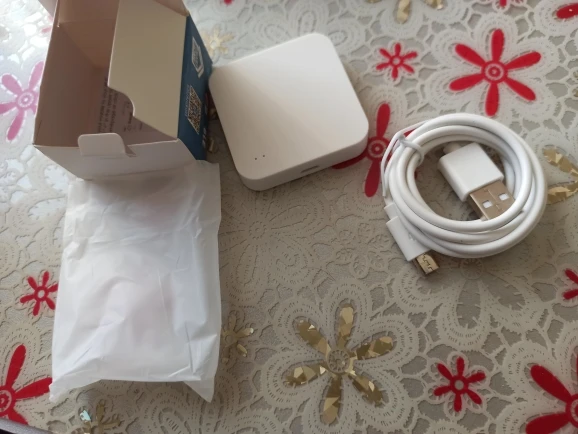

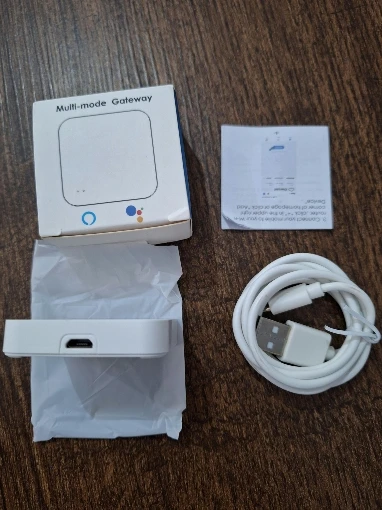

Q:What is the length of the cable used? What is the interface with the device?

A:The cables for G01 and G01PRO are 100cm. Currently, Micro USB is used, but we may modify it to Type-C without notification.

The USB cable is only used for power supply and has no data function.

Q:What type of power adapter is required?

A:The power adapter is not included in the package.

The power adapter needs to use 5V/1A or higher.We recommend using the power adapter of an old phone.

Poor quality or power sufficient power adapters may cause unstable operation of the device
